Features |
Performance curve&Installation Structure |

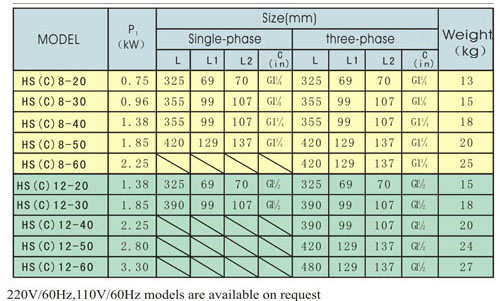

Type & Parameter |
|
Motor
2-pole induction motor;
three-phase: 380~415V/50Hz
Single-phase: 220~240V/50Hz
Single-phase with thermal protector
Insulation class: B or F
Protection: Ip55
Continuous duty
Applications£º

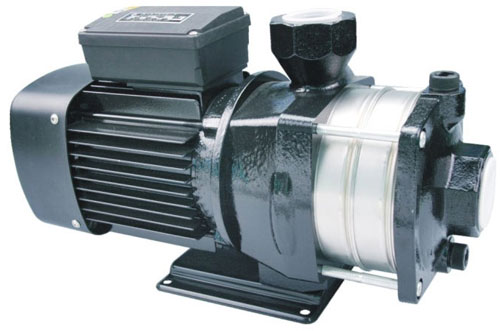

CMH series are mini horizontal centrifugal pump ,
have a wide application in domestic water supply¡¢
industry and constructions. They are used for:
Air-conditioning system
Cooling system
fire fighting system
Industrial cleaning¡¢conveyance and circulation
of liquid.
Water treatment (Water purification)
Domestic water supply ¡¢garden sprinkler
Boosting¡¢environment
Many other special application.
Operation Conditions£º
Thin, clean, non-flammable and non-explosive liquid
containing no solid granules and fibers;
Liquid temperature: Standard Model:
-20¡æ~70¡æ, Hotwater less than 105¡æ;
Max environmental temperature: +50¡æ
Max. operating pressure: 10 bar
Max. suction pressure is limited by max. Operation
pressure. |
|
|
|
