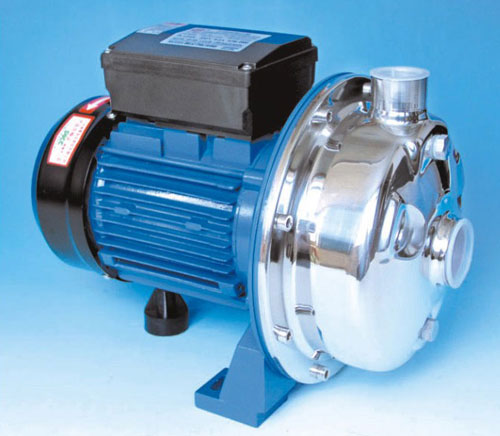

Stainless Steel Centrifugal Pump
Product Model
¡¤BS
 PDF Information
Enlarge

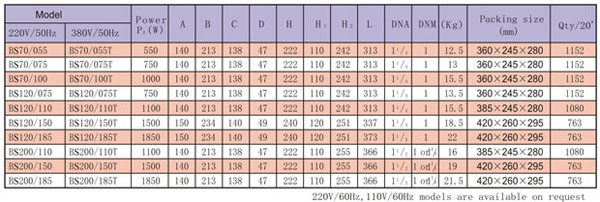

Features Performance curve&Installation Structure Type & Parameter
Motor
2-pole induction motor
Three-phase £º380V/50Hz
Single-phase £º220V/50Hz
Single-phase with thermal protector
(Thermal protector for three phase motor are av-
ailable on request)
Insulation class B or F
Protection 55
Continuous duty
Applications£º
non-flammable or non-explosive clear water without abrasive or fibre and not aggressive to stainless steel.
Pure water or drinking water bottling
Air-condition or cooling system, industrial washing and other especial application.
Operation Conditions£º
Liquid temperature: +5¡æ¡«+60¡æ
Ambient temperature up to 50 ¡æ
Max.working pressure 8 bar
