Features |

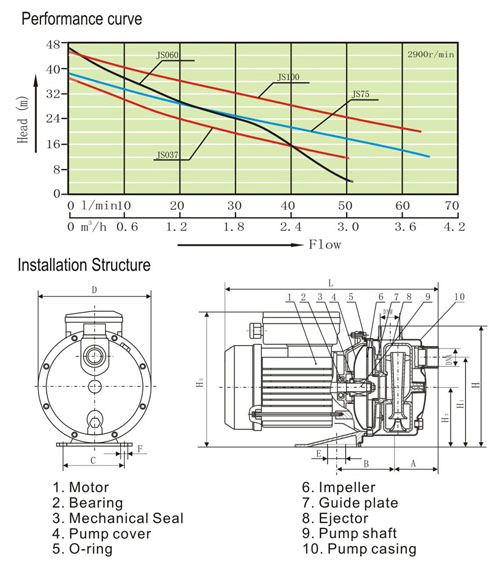

Performance curve&Installation Structure |
Type & Parameter |
|
Motor
2-pole induction motor
Three-phase£º380V/50Hz
Single-phase£º220V/50Hz
Single-phase with thermal
protector (Thermal protector for three phase motor
are available on request)
Insulation class B or F
Protection IP55
Continuous duty
Applications£º
non-flammable or non-explosive clear water without
abrasive or fibre and not aggressive to stainless steel.
Pure water or drinking water bottling.
Household boosting, garden sprinkler, car washing.
Air-condition or cooling system, industrial washing
and other especial application.
Operation Conditions£º
Liquid temperature: +5¡æ¡«+60¡æ
Ambient temperature up to 50¡æ
Max. Working pressure: 6 bar
Max. suction head : 8 m |
|
|
|
