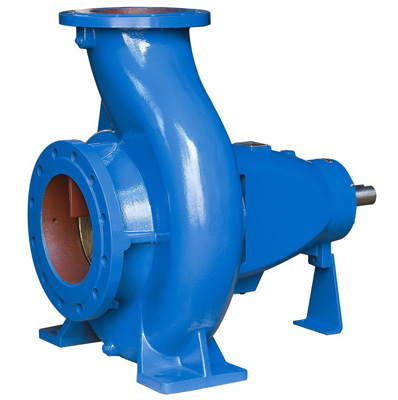

Product Model
PA
 PDF Information
PDF Reader:Click to Download
Enlarge

Applications
The PA pumps series comply fully to the European standard DIN24255. This standard covers both performance and dimensions.
For a pump of same the model, the performance can be changed by trimming the outer diameter of the impeller. Only four shafts are required to cover the total range, and this gives many common interchangeable parts for pumps fitted to the same shaft. Just like the shaft, the bearing house has only four sizes for the whole series. The pump has a back pull-out design, and when a suitable spacer coupling is fitted to a direct coupled unit, the casing and motor can remain in position while all other pump parts can be removed for simple and quick maintenance.
Design: Horizontal, Single-Stage Volute Casing pumps with dimensions and nominal ratings standard to DIN24255.
Type:End Suction Centrifugal, back pull-out
Flange:DIN2332 PN 10RF
Direction of Rotation: Clockwise as viewed from the drive side.
Material:
Casing - Cast Iron and Ductile Iron standard; optional Stainless Steel
Impeller - Bronze standard, optional Cast Iron & Stainless Steel
Shaft - AISI420 standard, optional AISI304 & AISI316
Shaft Seal - Mechanical Seal standard
Carbon-Sic/Vinton (optional) Optional Gland Packing;
Operating Range:
Flow Rate(Q) : 2 -1100 m3/h
Head(H) : 2 - 150 m
Speed : 1450-2900 rpm (50HZ) 1750-3500 rpm (60HZ)
Temperature : 10 to 105 standard; optional 105
Using pressure: 10Bar standard; optional 16Bar
